Pharmaceutical Cold Chain Shipping Boxes

Evaluate a passive VIP and coolant configuration for your medicines, shipment size and transport route. Start with the information you have; our team replies within 1 working day.

Request a pack-out assessment Technical documents

Request a pack-out assessment

Parcel box or pallet shipper?

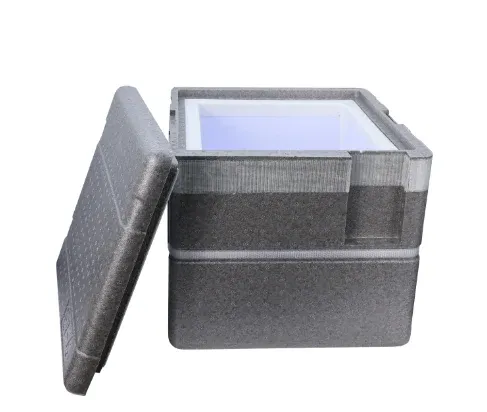

EV series: EPP outer box with the lid removed and inner insulation visible.

EV series: parcel-scale shipments

Start with EV-6 and EV-14 when comparing smaller shipping boxes. Check the space remaining after coolant placement against the actual product packaging.

Compare EV models

Reference pallet shipper assembled and with its removable insulation panels stacked.

Pallet shippers: consolidated loads

Evaluate the loading envelope, handling access and return arrangement for larger shipments. The reference technical sheet includes construction, assembly and a specific chamber test.

Explore pallet shippers

Product construction examples. The coolant layout and usable payload space must be confirmed for the selected configuration.

Define the permitted temperature range

Share the limits specified for your product, not only a nominal coolant temperature. A request for 4–8°C needs a different acceptance window from 2–8°C: a result below 4°C can meet the latter but not the former.

A published result for one box and pack-out is not a guarantee for another. Panel conductivity alone cannot establish whole-shipper holding time.

From your shipment to a configuration proposal

1. Describe the shipment

Start with journey duration, usable capacity or packaged payload dimensions, and the number of boxes. Mention the required temperature limits and destination if known.

2. Review the pack-out

Confirm coolant type, conditioning and placement; product starting temperature; payload loading; ambient conditions; and a margin for expected delays.

3. Agree the evaluation

Review the proposed box, sample requirements, test configuration and acceptance criteria. Confirm sample availability, MOQ, lead time and delivery terms in the project quotation.

What to check in a test report

Exact box size, insulation construction and coolant quantity
Coolant conditioning, payload or simulant, and loading diagram
Ambient profile, sensor positions, temperature limits and end criterion
Assembly, handling and reuse conditions relevant to the shipment

Request the pallet-shipper technical sheet

Read the material and qualification guide

Frequently Asked Questions

Can I request an assessment before all details are final?

Yes. Start with transport duration, approximate usable capacity and quantity. The temperature limits, payload, ambient conditions and validation requirements can then be clarified for the proposed configuration.

Is the listed box capacity the usable space for medicines?

Not necessarily. Coolant, internal packaging and clearances can reduce the available payload space. Confirm the loading dimensions with the complete pack-out before ordering.

Does a 2–8°C test also demonstrate performance at 4–8°C?

No. The temperature trace must remain within the requested limits under the agreed test conditions. A 2–8°C result alone does not establish 4–8°C performance.

Request a pack-out assessment

Tell us what you need to transport. We will review the available information and identify the next details needed for product selection.
