EV Series EPP-VIP Insulated Boxes
The EV series combines an expanded polypropylene outer box with vacuum insulation. Choose the box around the packaged goods and coolant layout, then assess transport and return handling for the complete system.
Request a quote or sample
At a glance
- Four models compared on one page
- Loading dimensions are listed separately from empty inner dimensions

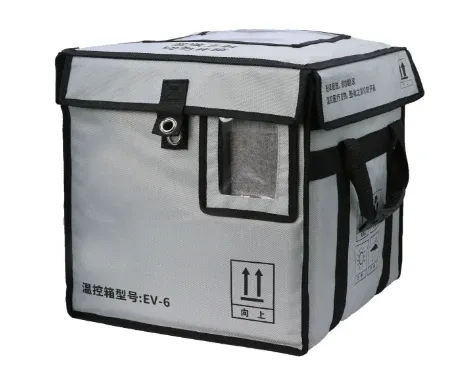

- Transport-cover example shown on EV-6
Model dimensions
| Model | Load space (mm) | Inner size (mm) | Outer size (mm) | Listed box weight (kg) |
|---|---|---|---|---|
| EV-6 | 190 × 190 × 185 | 259 × 259 × 259 | 389 × 404 × 386 | 6.50 |
| EV-14 | 270 × 235 × 230 | 337 × 304 × 304 | 463 × 445 × 429 | 8.60 |
| EV-32 | 355 × 305 × 300 | 432 × 385 × 385 | 552 × 520 × 507 | 12.10 |
| EV-60 | 395 × 395 × 380 | 472 × 472 × 472 | 602 × 612 × 599 | 15.30 |
Catalogue dimensions, in the published order. Box weight is not loaded shipping weight: coolant, goods and transport packaging must be accounted for separately. Confirm the drawing and pack-out revision before ordering.
EV-6 or EV-14?
Compare the packaged product against the loading dimensions, not the model number. EV-14 provides a larger loading envelope; check whether dividers, sensors or secondary packaging need additional clearance.
Qualify the complete pack-out
Specify the target temperature, journey duration, seasonal ambient profile and payload. Ask for the matching coolant quantity, conditioning procedure, loading drawing and test report. A catalogue duration alone does not establish suitability for a pharmaceutical shipment.
Plan return handling
Define cleaning, inspection and retirement criteria for the shell, closure and insulation. Include return freight and replacement components when comparing cost per trip.
