Battery Thermal Management with VIPs: Pack Insulation vs. Thermal-Runaway Barriers
TL;DR
- Battery insulation has two different jobs: retain pack heat during cold soak and delay heat transfer from a failing cell or module.
- Ultra-thin VIPs (typically 1–5 mm) target enclosure-level heat retention; metal-envelope VIPs target puncture resistance, non-combustibility and high-temperature transient protection.
- In Super Tech sample testing, a 3 mm ultra-thin VIP extended the time for a battery pack to cool from 25 °C to 0 °C in a −20 °C chamber from about 3.5 hours to about 10 hours versus 3 mm foam.
- An 8 mm metal VIP sample exposed to a 600 °C hot face reached 123.1 °C on the cold face in the reported test setup — a 476.9 K face-to-face difference.
- These are component test results, not pack-level guarantees. Cooling, venting, electrical isolation, edge bridges and current safety standards still govern the final design.
One battery pack, two very different heat-transfer problems
“Battery thermal management” is often treated as one problem, but insulation works in two opposite situations. During a cold soak, the objective is to keep useful heat inside the pack, reducing heater demand and helping cells return to an efficient charging and discharge range. During thermal runaway, the objective is to slow heat moving from the initiating cell toward its neighbours while the cooling and safety systems manage the event. A material selected for one job is not automatically suitable for the other.
| Design question | Pack heat retention | Thermal-runaway barrier |
|---|---|---|
| Typical location | Pack enclosure, lid or underbody | Between cells, modules or fire zones |
| Dominant process | Steady or quasi-steady heat loss | Fast transient heat transfer |
| Suitable VIP family | Ultra-thin film-envelope VIP | Heat-resistant metal-envelope VIP |
| Primary evidence | U-value, cold-soak curve, heater energy | Cold-side temperature-time curve, propagation result |
| Failure concerns | Moisture ingress, puncture, edge bridges | Flame exposure, vent jets, compression, electrical isolation |
Why a special VIP can fit where conventional insulation cannot
A vacuum insulation panel suppresses gas conduction by evacuating a porous core and sealing it inside a barrier envelope. That allows very low center-of-panel thermal conductivity in a thin section. Battery-specific designs change the core, envelope and sealing method to add electrical, mechanical and temperature performance. The useful comparison is therefore not “VIP versus aerogel” in the abstract, but the complete component inside the intended pack architecture.
Metal-envelope VIPs for delaying thermal propagation
The tested metal VIP construction used an aluminium or stainless-steel envelope, a high-temperature inorganic core and a welded vacuum seal. The reported sample specification combined center-of-panel thermal conductivity below 3 mW/(m·K) at 25 °C with a design temperature range extending from cryogenic conditions to high-temperature exposure. The metal skin also adds puncture resistance and non-combustible surface protection that a polymer laminate cannot provide.
| Controlled hot-face temperature | Measured cold-face temperature | Face-to-face difference |
|---|---|---|
| 200 °C | 23.4 °C | 176.6 K |
| 400 °C | 26.8 °C | 373.2 K |
| 600 °C | 123.1 °C | 476.9 K |
In the same engineering study, the cold face of an 8 mm metal VIP remained 148.4 °C cooler at a 400 °C hot face and 204.8 °C cooler at a 600 °C hot face than the cold face of a 9 mm aerogel felt specimen. Those differences describe the cited fixture, sample geometry and boundary conditions; they should not be applied directly to another pack without reproducing the test.
A useful two-dimensional effect — with an important caveat
Across its thickness, the evacuated core strongly resists heat flow. Along its face, however, a conductive metal envelope can spread local heat toward a cooled rail or heat sink. That “insulate through-plane, spread in-plane” behaviour can help reduce the peak thermal load between neighbouring cells. It can also create an edge bypass if the perimeter is poorly designed. The panel edge, weld, fasteners and cooling interface must therefore be simulated and tested as part of the assembly, not hidden behind a center-of-panel λ value.

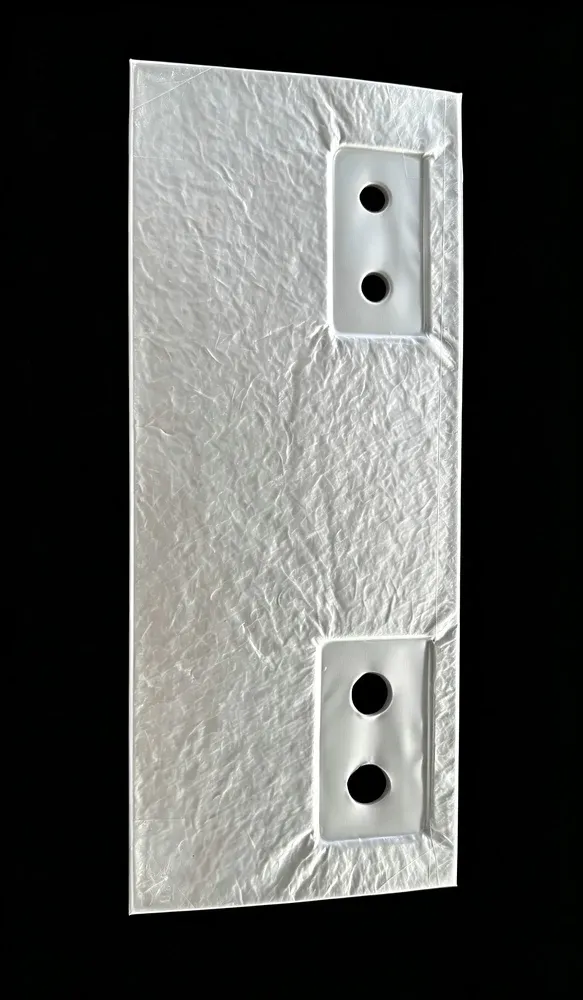

Ultra-thin VIPs for cold-weather pack insulation
Enclosure insulation is a different product problem. Film-envelope VIPs in the 1–5 mm range can reduce heat loss without consuming the volume needed for cells, cooling plates or crash structure. In Super Tech reliability testing, an ultra-thin sample started at 3.5 mW/(m·K) and remained at or below 8 mW/(m·K) after 1,000 hours at 85 ± 2 °C and 85 ± 5% relative humidity.
A pack comparison used the same 3 mm insulation thickness and the same initial pack temperature of 25 °C before exposure to a −20 °C chamber under natural convection. The foam-insulated pack reached 0 °C in about 3.5 hours; the pack using the ultra-thin VIP took about 10 hours. This more-than-threefold result is useful evidence for concept selection, but vehicle range and charging gains must still be measured with the production pack, heater strategy and drive cycle.
Thermal conductivity is only half the specification
Thermal conductivity (k or λ) describes heat flow under a defined temperature gradient and is the right starting point for enclosure heat loss. Thermal-runaway protection is transient, so the rate at which temperature propagates also matters. Thermal diffusivity is expressed as α = k / (ρ × Cp): conductivity divided by volumetric heat capacity. Low α means a material responds more slowly to a sudden thermal input.
Very thin specimens also expose a measurement problem. Standard guarded-hot-plate and heat-flow meter methods are easier to apply above roughly 10 mm; at 1–3 mm, thickness and contact errors can dominate the result. For battery barriers, report λ together with heat-flux-controlled temperature-response curves and a clearly defined preload, fixture and edge condition.
Seven checks before specifying a battery VIP
- Define the job: cold-soak retention, inter-cell propagation delay, or both.
- Model the full heat path: include panel edges, joints, fasteners, cooling plates and vent direction.
- Protect electrical isolation: verify dielectric strength after forming, compression, vibration and aging.
- Design for mechanics: account for cell swelling, assembly tolerance, crash loads and puncture risk.
- Keep the escape path open: insulation must not obstruct gas venting or trap heat where cooling is required.
- Age the real stack: combine temperature/humidity, salt spray where relevant, vibration and thermal cycling.
- Validate at system level: component data narrows the design space; module and pack tests make the safety claim.
Standards note: do not design to the old five-minute headline
China’s current mandatory traction-battery safety standard is GB 38031-2025, effective since 1 July 2026; GB 38031-2020 is obsolete. A current qualification plan should use the applicable edition and target market requirements rather than repeat the older “five-minute warning” shorthand. Material testing supports compliance, but compliance belongs to the tested cell, module, pack or vehicle system.
Frequently asked questions
Where are vacuum insulation panels used in a battery pack?
Two locations serve different jobs. Ultra-thin VIPs can line the pack enclosure to slow heat loss in cold weather, while heat-resistant metal-envelope VIPs can sit between cells or modules to delay thermal-runaway propagation. The construction and validation method must match the location.
Can a VIP replace the battery cooling system?
No. A VIP is a thermal-control component, not a complete battery thermal management system. It must be integrated with liquid or air cooling, heat spreaders, sensors, BMS controls, vent paths and fire-safety measures. Too much insulation in the wrong place can retain unwanted heat during normal operation.
Is thermal conductivity enough to select an inter-cell barrier?
No. Steady-state thermal conductivity is important, but a thermal-runaway event is transient. Engineers also need cold-side temperature-time curves, thermal diffusivity, heat capacity, edge heat transfer, electrical insulation, compression behavior and pack-level propagation results.
How thin are battery-grade vacuum insulation panels?
Ultra-thin pack-insulation designs are commonly developed in the 1–5 mm range. Metal-envelope barriers are sized around the required temperature exposure, mechanical protection and integration space. Final thickness must be qualified in the actual cell, module or pack assembly.
References
- Super Tech engineering paper: special VIPs in battery thermal management — source of the sample constructions and reported comparison data.
- GB 38031-2025 — Electric vehicles traction battery safety requirements, National Standard Information Public Service Platform.
- ISO 8301 / ASTM C518 — steady-state thermal resistance and conductivity measurement by heat-flow meter apparatus.
