Fiberglass VIP
Start with the barrier-film configuration, then select the panel dimensions and density. Double Alu, Hybrid and Nano use glass-fiber or glass-microfiber cores with different barrier films. All three include getter and desiccant.
Request a quote or sample- Double Alu: 2.0 ± 0.5 mW/(m·K)
- Hybrid / Nano: 1.8 ± 0.4 mW/(m·K)
- 5–35 mm
Compare three configurations

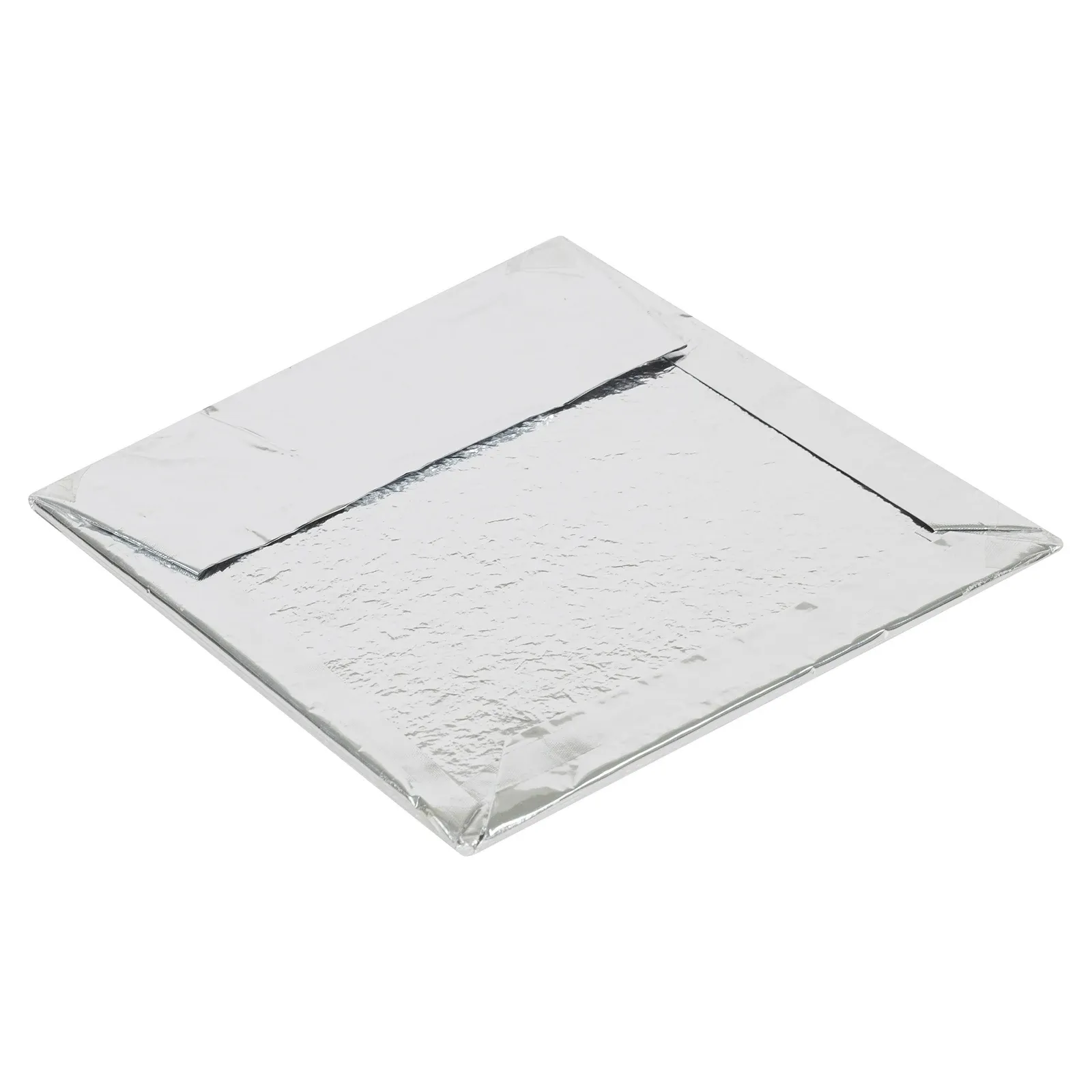

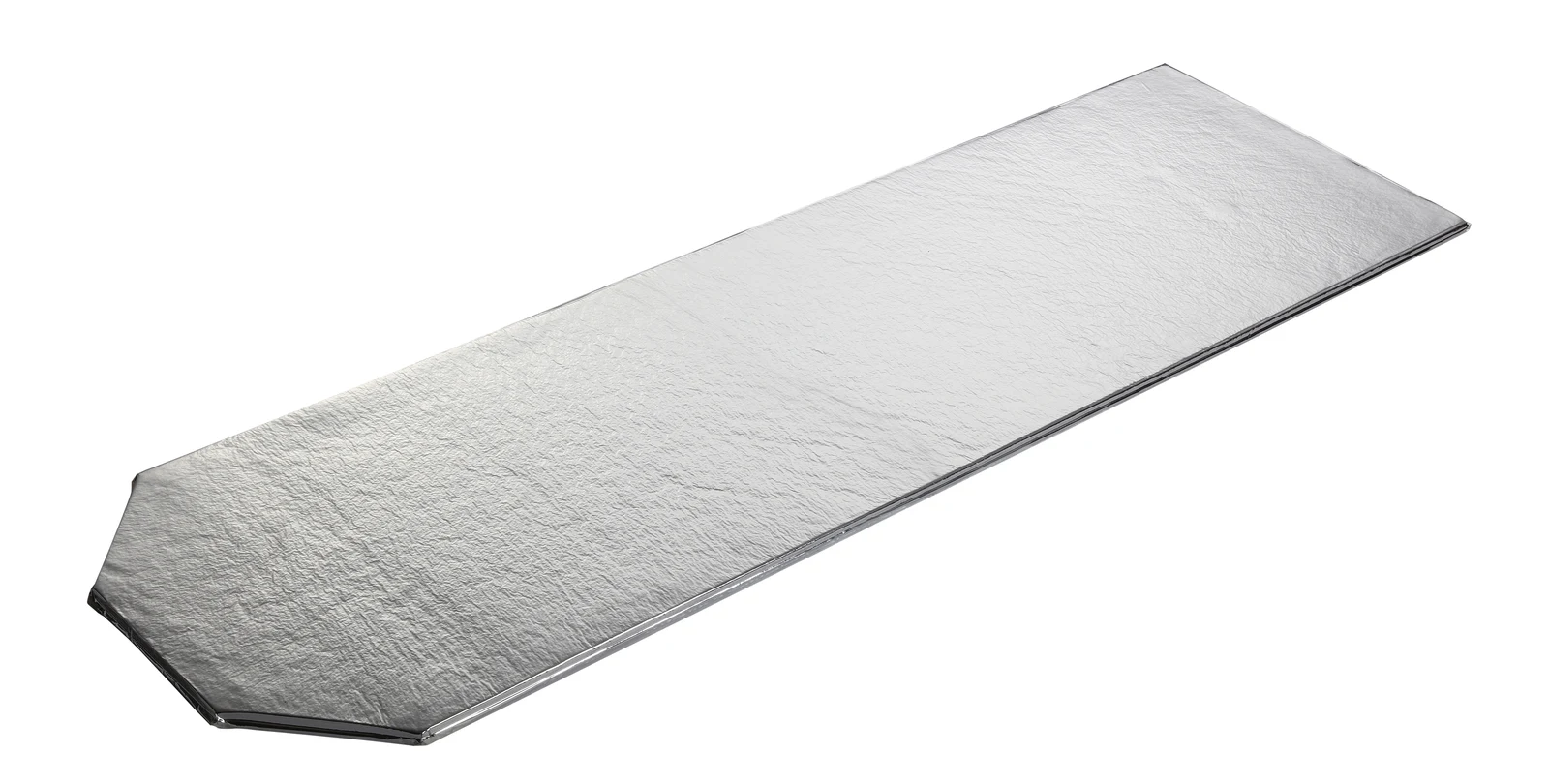

The film and adsorption package are part of the specification, not interchangeable accessories. Product photos show fiberglass-series geometry; the film grade is confirmed with the order.
| Property | Double Alu VIP | Hybrid VIP | Nano VIP |
|---|---|---|---|
| Thermal conductivity λ | 2.0 ± 0.5 mW/(m·K) | 1.8 ± 0.4 mW/(m·K) | 1.8 ± 0.4 mW/(m·K) |
| Core | Glass fiber or glass microfiber | Glass fiber or glass microfiber | Glass fiber or glass microfiber |
| Barrier film | Double-sided aluminum film | Hybrid Film | Nano Film |
| Adsorbents | Getter + desiccant | Getter + desiccant | Getter + desiccant |
| Panel density | 320–360 / 240–280 kg/m³ | 320–360 / 240–280 kg/m³ | 320–360 kg/m³ |
Density options are configuration-specific. The 240–280 kg/m³ option is not listed for Nano VIP.
Dimensions and operating range
All three configurations share the following dimensional envelope. Confirm the final drawing, edge treatment and assembly clearances before production.
| Property | Specification |
|---|---|
| Length | 80–2000 mm |
| Width | 80–800 mm |
| Thickness | 5–35 mm |
| Service temperature | −70 to +100°C |
| Preferred operating range | −40 to +60°C |
| Tape | Hot-melt tape |
Hybrid and Nano film barrier data
These are film-level indicators. They are not the leakage rate of a finished VIP and do not replace panel-level aging or edge-bridge evaluation.
| Property | Hybrid VIP | Nano VIP |
|---|---|---|
| Helium permeability, Pa·L/(s·cm²) | < 5 × 10⁻⁷ | < 5 × 10⁻⁸ |
| Water-vapor transmission, 38°C / 90% RH | < 0.02 g/(m²·24 h) | < 0.005 g/(m²·24 h) |
Technical documents
Complete English PDF documents are available by email request.
- Fiberglass VIP (ST-TDS-GF-01)
